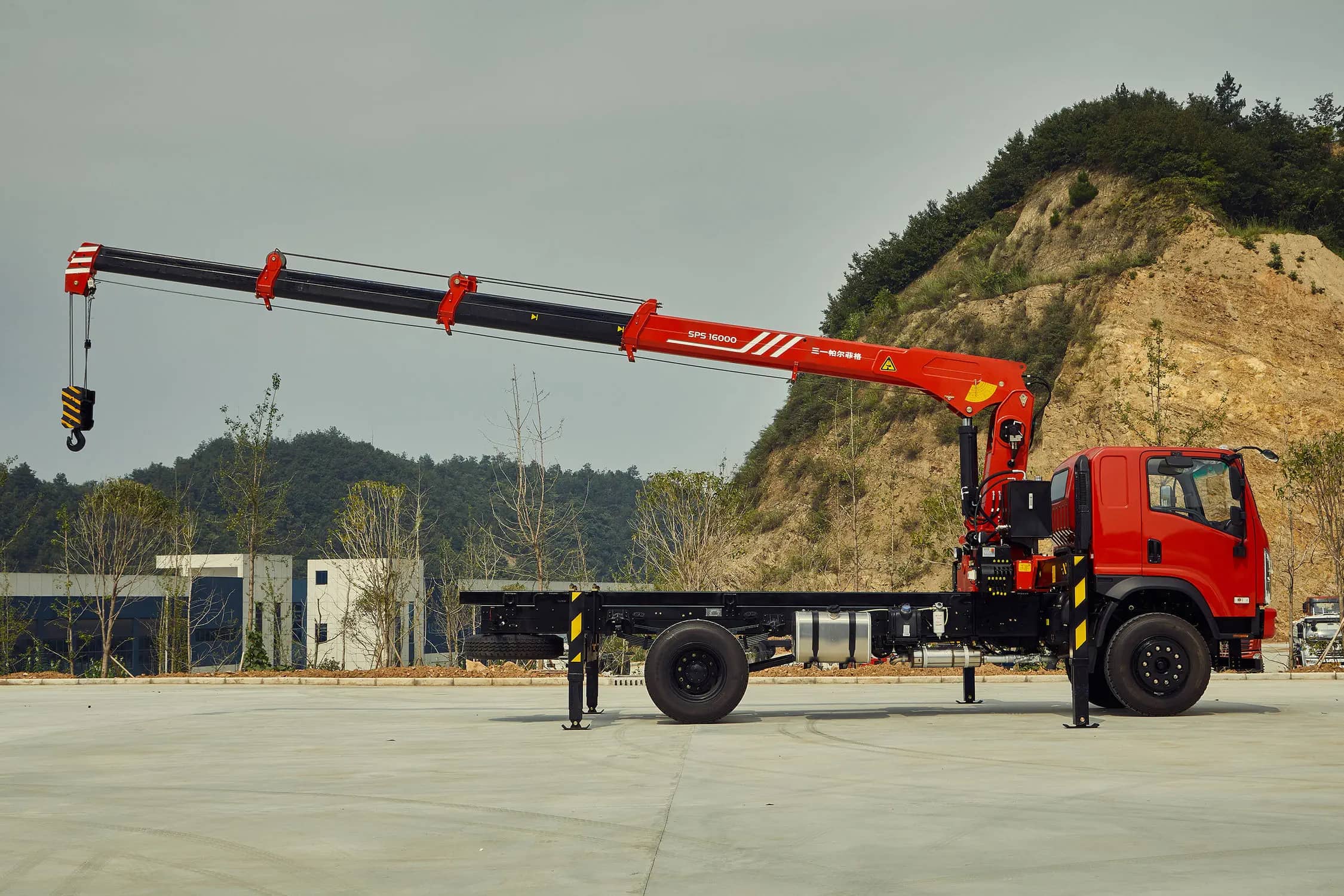

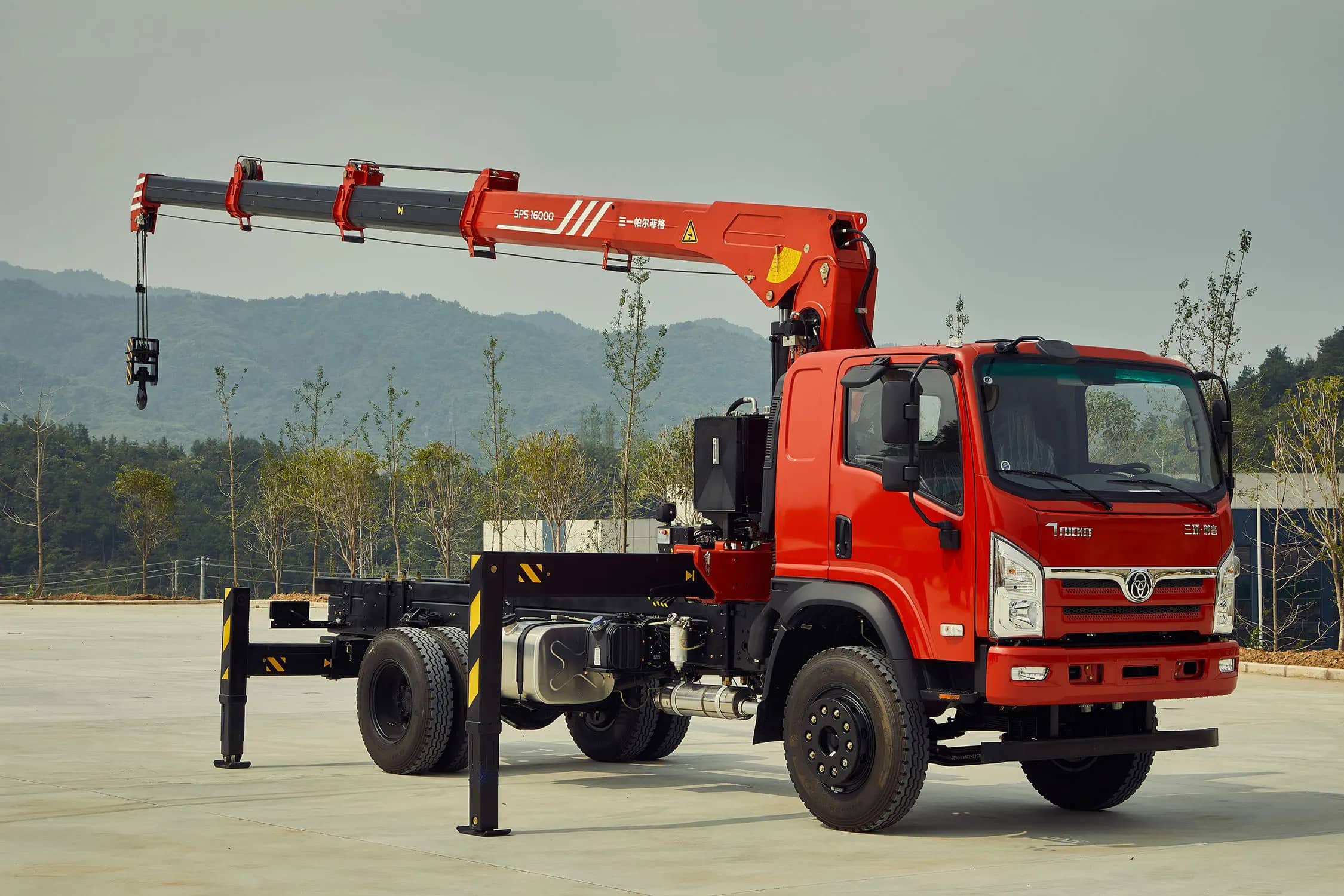

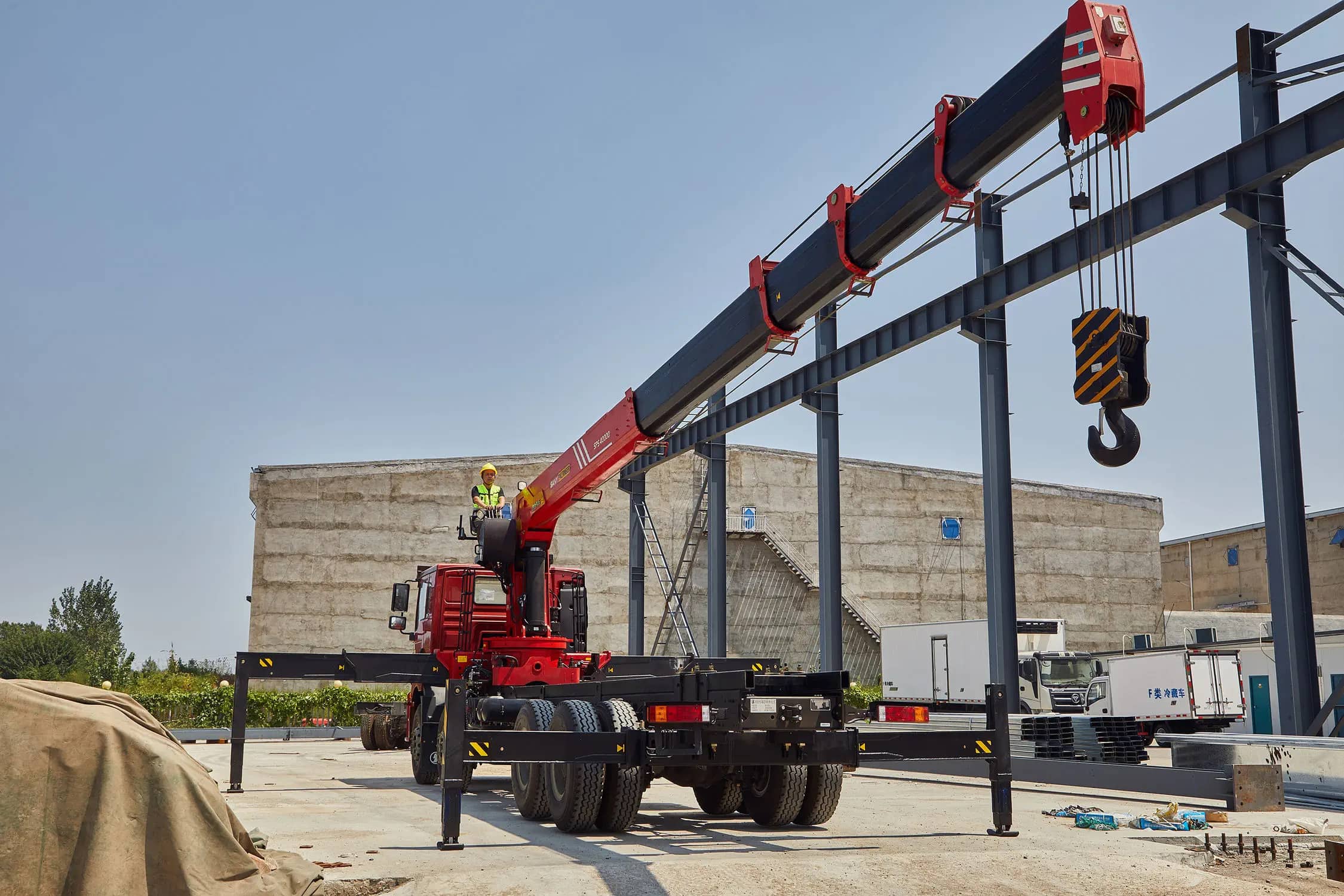

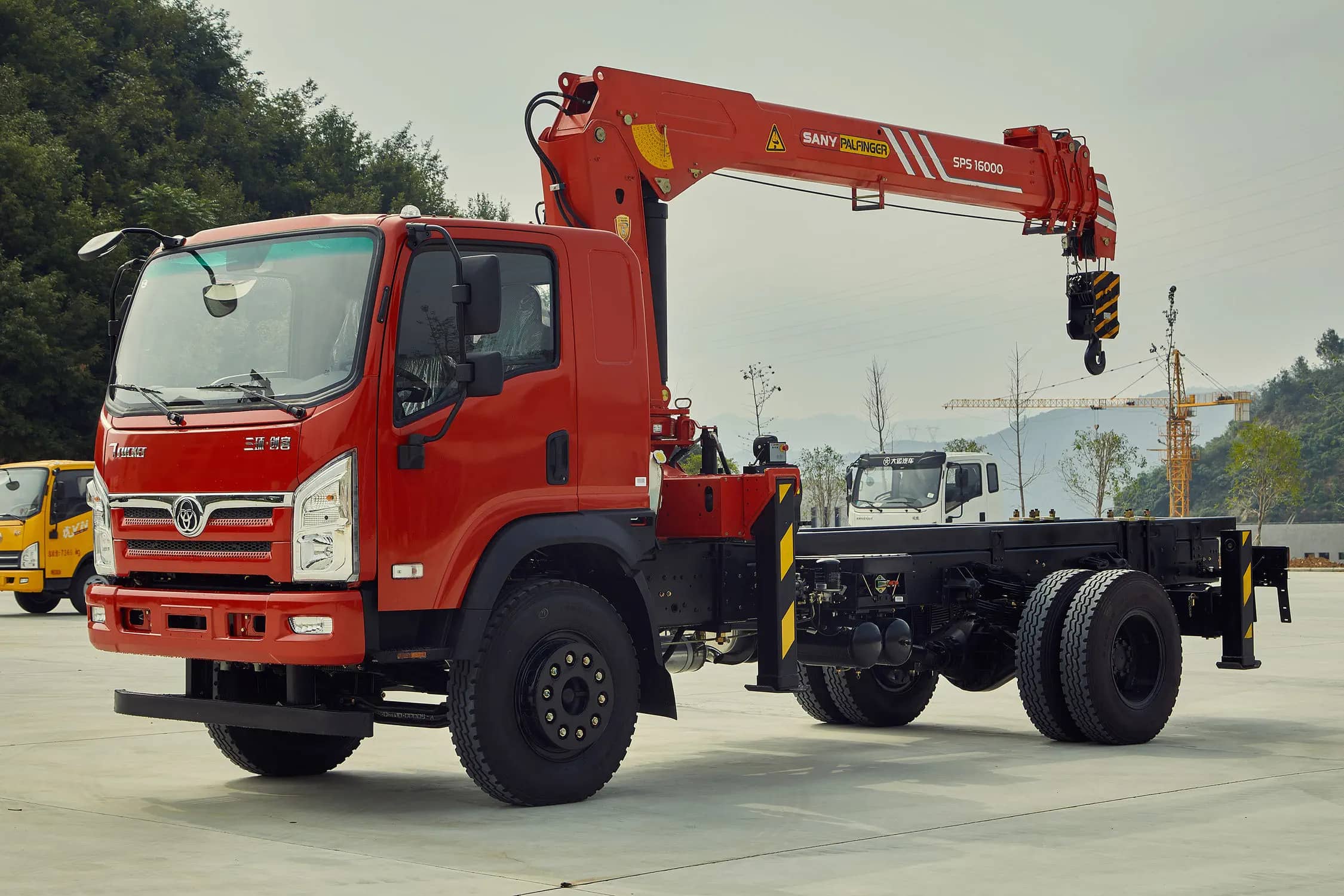

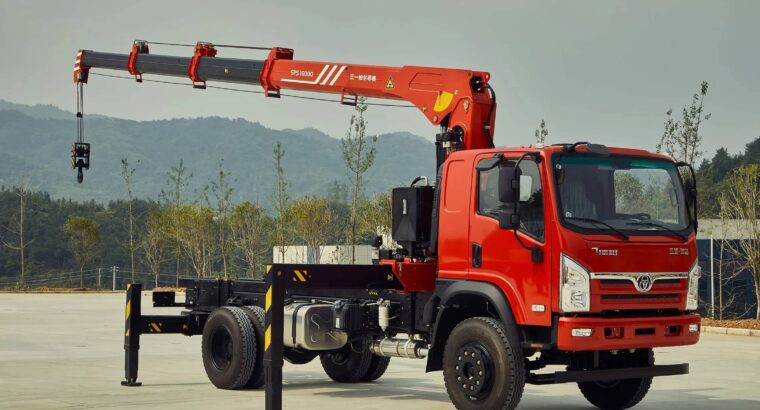

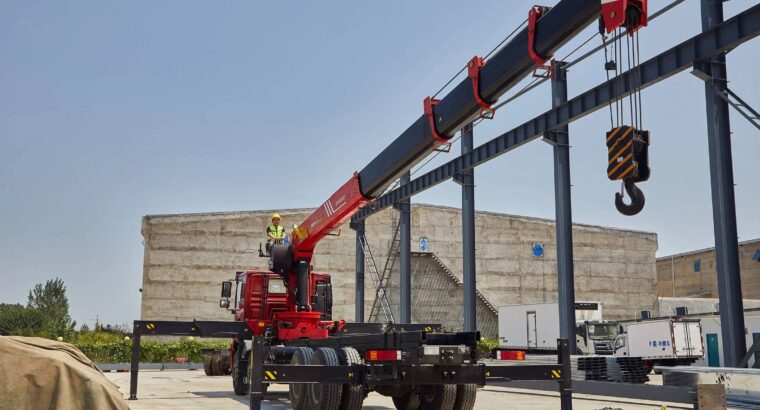

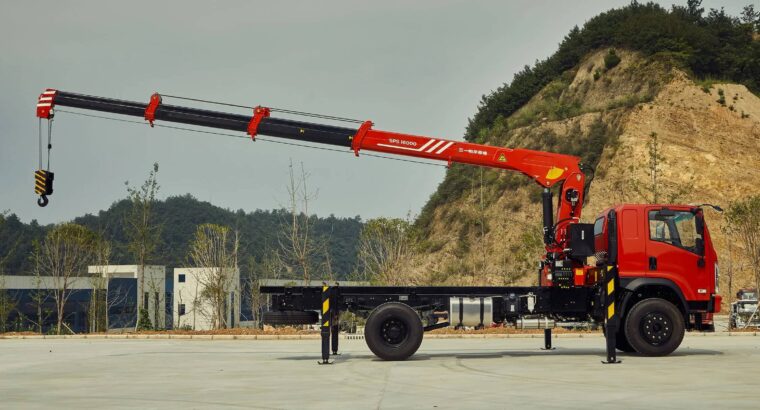

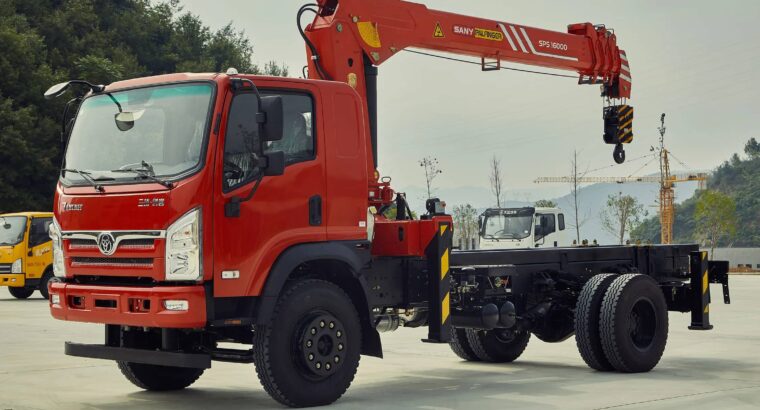

Get Your 2025 SANY SPS16000 7 Ton Stiff Boom Crane

Engineered for durability and accuracy, the SANY SPS16000 7 Ton Stiff Boom Crane sets a benchmark in lifting technology. It combines exceptional strength with seamless hydraulic performance for smooth operation. The machine’s stable design ensures precision and safety on every lift. Built to handle demanding workloads, it promises excellent reliability and efficiency. Its easy serviceability reduces operating downtime. SANY SPS16000 is perfect for professionals seeking power and endurance in a compact crane.

Features-

Ergonomic Design: Integrated Electric System: (i) Robust, reliable, and easy-to-maintain design
(ii) Network of modular components connected through standardized interfaces

Advanced Proportional Hydraulic System: Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.

High Pressure and Return Filter: All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system

High Density Paint System: (i) Demonstrates superior performance
(ii)  Long-term UV-resistance
(ii) Attractive aesthetics

Parameters–

• Boom Length: 4.7-12.5m
• Length of the Basic Boom: 4.7 m
• Length of the Fully Extended Boom: 12.5 m
• Max. Lifting Capacity: 7.5T
• Max. Lifting Height: 14.6m
• Max. Outreach: 12.3m
• Numbers of the Boom: 3 or 4
• Operating Mode: Lower seat
• Outrigger Span: 5.3 (m)
• Overall Weight: 2.65T
• Range of the Boom Lifting Angle: 0~75°
• Rated Lifting Moment: 16mt
• Rated Lifting Weight: 7T
• Recommended Volume for the System: 45-65 L/min
• Slewing Angle: Endless

>>>Request for quote: +971525384269<<<
