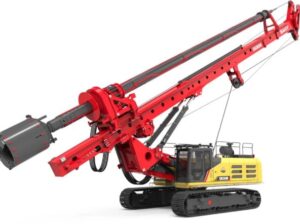

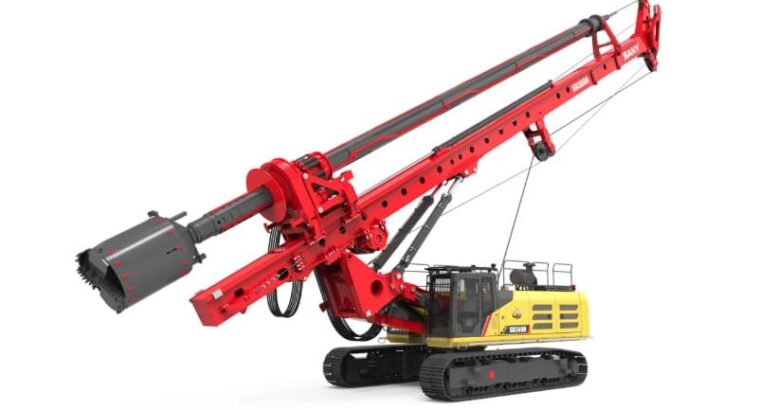

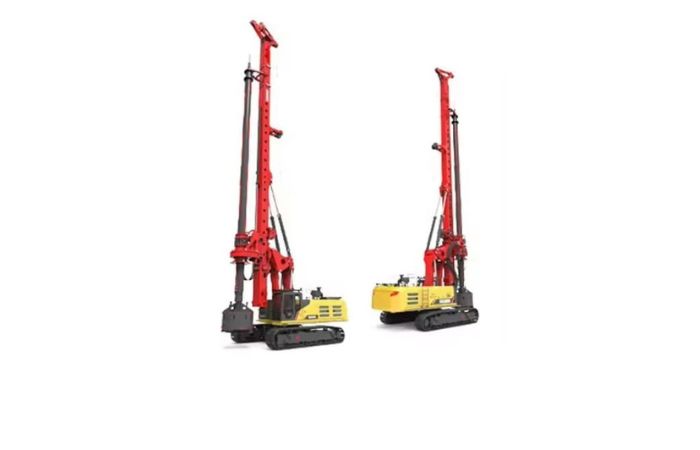

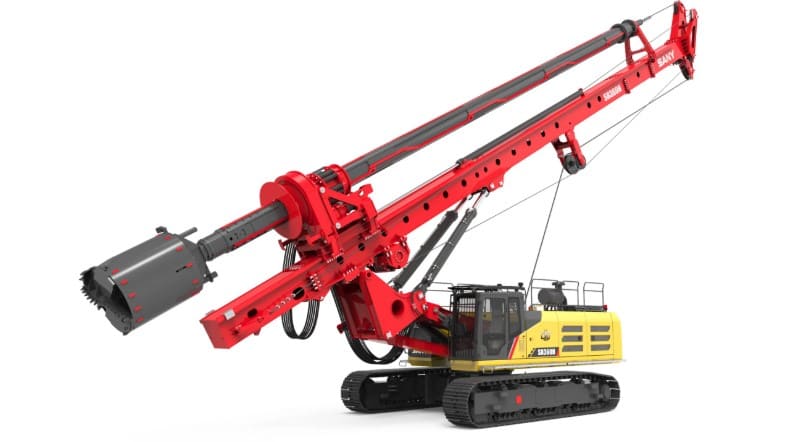

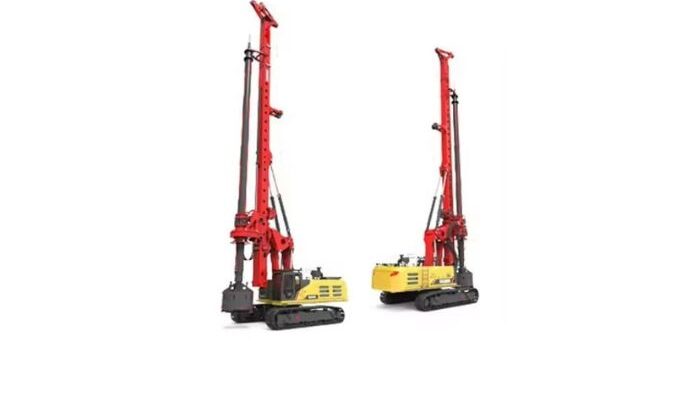

Buy Latest 2025 SANY SR360R-H10 Rotary Drilling Rig

The SANY SR360R-H10 Rotary Drilling Rig is an advanced rotary drilling rig engineered for modern construction needs. Its rotary drive provides powerful torque for deep foundation work. Intelligent hydraulics guarantee efficient, reliable, and precise drilling. With a reinforced structure, it withstands challenging working conditions. Cost-efficient operation and low maintenance increase project profitability. An excellent choice for contractors in infrastructure and heavy-duty piling applications.

Features-

• Large Construction Capacity: Expert in construction of large diameter and 100m deep borehole; main winch with large lifting force to ensure stable operation.
• Strong Rock Drilling Ability: The heaviest model of the same level ensures large crowding force; equipped with heavy duty, impact resistance reducer to realize stable torque output; excellent drilling ability in hard rock layers more than 60MPa.
• High Reliability: The structural parts adopt impact, fatigue resistance technology in rock drilling, single layer wire rope winding for interlocking Kelly bar; free of mutual extrusion and wear in wire rope layers to increase service life by 35%.
• Economy and Energy Saving: Adopt power optimization control technology to realize power distribution in real-time, with excellent compound action response time. High fuel efficiency and low comprehensive fuel consumption, fuel consumption reduced by 10%~15%.
• Intelligent Upgrade: (i) HD touch screen, 3ms refresh frequency, smooth animation display.
  (ii) SANY patented locking device visualization technology can accurately display the process of locking and unlocking, reduce wear and Kelly bar accidents.
• Convenient Maintenance: The external driving key of rotary drive facilitates maintenance and replacement; the main winch wire rope end is fixed by wedge easy to disassemble and assemble. The special lubrication point connected with outlet hose to facilitate butter injection.
• Safe and Secure: 360° full-field monitoring, sound and light alarm.

Parameters-

• Base Engine: Isuzu 6WG1
• Engine Power: 300/1800kW/rpm
• Emission Regulation: China Stage Ⅲ
• Rated Speed: 5~25rpm
• Rated Output Torque: 360kN·m
• Max. Pile Diameter: 2500mm
• Max. Pile Depth: 100/65m
• Crowd Force: 290kN
• Stroke: 6000mm
• Line Pull: 335kN
• Overall Height: 26365mm
• Operating Weight: 120T
• Transport Width: 3530mm
• Transport Height: 3745mm
• Lifting Capacity: 360kN
• Max. Line Speed: 75m/min
• Rope Diameter: 36mm
